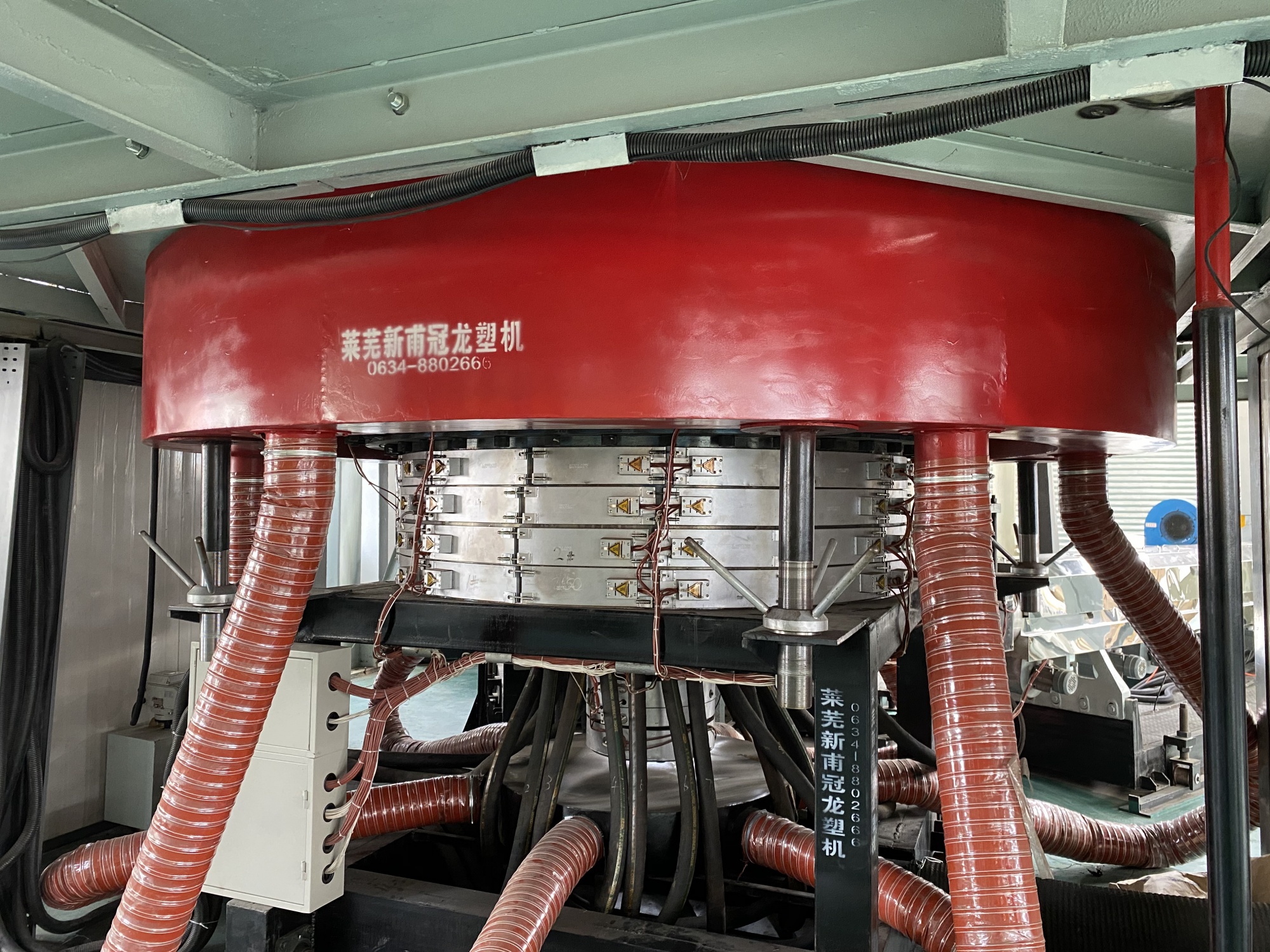

Three layer Geomembrane Extrusion Blowing Machine is to produce 3 layer 6-8 meter width HDPE geomembrane waterproof sheet. Geomembrane Thickness range from 0.5-2mm.
6 meter 7 meter 8 meter 10 meter
0.3-1mm 0.5-2.0mm
Product Detail
Model
3TGM3500
3TGM4000
3TGM4500
3TGM5500
Geomembrane width
6 meter
7 meter
8 meter
10 meter
Geomembrane thickness
0.3-2mm
Raw material
HDPE LDPE LLDPE
Max. Output
1000 Kg/H
1600 Kg/H
1800 Kg/H
1900 Kg/H
Extruder
150*1+135*2
180*1+150*2
180*3
180*2+200*1
Die diameter
1600mm
1800mm
2000mm
2200mm
Traction speed
0-10 m/min.
Total power
900 KW
1200 KW
1400 KW
1550 KW
Dimension
18*8*21 m
19*9*24 m
20*10*26.5 m
22*11.5*28.5 m
